Hot-sales high quality pick and place machine high capacitor with good stable
Brand introduction
Shenzhen ETON Automatic Equipment Co.,LTD is a national high-tech enterprise and dual-soft enterprise dedicated to the research and development, production, sales and after-sales technology of SMT high-speed placement machines.
Introducing machine

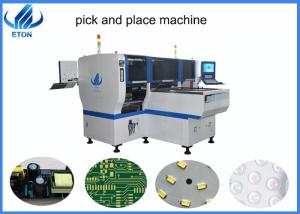

1. This is multifunctional machine HT-E8D with double module,total 24 heads,each part 12 head,can produce 2 types of products at the same time.
2. The X axis is magnetic linear motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
3. Its high precision,apply to LED chips,resistor,capacitor,IC,shaped components etc.
4. It is high speed machine,the optimum speed is 90000CPH.
5. Component:Min.size 0402 Max.height 15mm
Machine parameter
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total weight | 2500kg |
| PCB | Length width | Max:1200*300mm Min:100*100mm |
| Thickness | 0.5-5mm |
| Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separate placing,separate picking and separate placing. |
Feeding system of machine
| Feeding system | No.of feeder station | 48 PCS double module |
| No.of nozzles | 24 PCS double module |
| Feeding way | Electric feeder with double motor |
Mounted products
It’s intelligent,can produce different types of LED light and electric board,such as tube,bulb,strip,panel,downlight,streetlight,power drive.
Company Information
- Our company ETON is the largest high-tech manufacturer in China,which start from 2011,have very good experience in manufacturing SMT machines.
- we have our own Industrial Park,which equipped with an advance processing and manufacturing center.
Honour Client
In the market,around 80% of large LED factory are our client.
Certification of Honor
Our company has obtained CCC, CE, SIRA certificates, and not only these, our company has successively won the National High-tech Enterprise, 2015 LED Technology Innovation Award, Industry Special Contribution Award and so on.
Payment,service and delivery
✸The payment method we support is T/T
✸The delivery is within 30 days after receiving the deposit!
✸There are 4 points for after-sales service, please see the picture below!
FAQ:
Q:It it hard to use these machine?
A:No,not at all.Usually 3 to 5 days is enough to learn operate the machine.
Q:English version for these machines?
A:Yes,English and Chinese interface are both available.
Q:How is the training?
A:After buying our machine,we will send our engineer to your factory to install machine and training freely.
Q:What is the fastest speed of your machine?
A:The fastest speed can reach 25W CPH
