LED Bulb making mounter min components 0201 with overseas service pick and place machine
Machine features
1. YT 101S is one of the newly launched YT series products from ETON.
1. High-speed Multi Modular Head (non replace modular head).Apply to 0201~40*40mm tape reel package.
2. Improve recognition performance, size up to 40*40mm, apply to BGA or CSP etc.
3. PCB Max size:500*350mm.
4. 10 heads, the optimum speed reached 40000cph.
5. Feeding way: Intelligent double head feeder.
Machine parameter
| Model | YT101S |
| Dimension(L*W*H) | 2154*1376*1762mm |
| Weight | 1700kg |
| PCB length width | Max size:500*350mm |
| PCB thickness | 0.5~4.5mm |
| Repeat precision | ±0.02mm |
| Mounting height | ≤20mm |
| No.of camera | 2PCS |
| Vision alignment, Mark correction |
| Components range | Min 0201~40*40MM Packages and IC etc |
| Rail | Rail 1 is fixed |
| Power consumption | 380AC50HZ 4KW |
| Optimum Mounting speed | 40000CPH |
| No. Of feeders station | 16 PCS ,tape reel packages 32 PCS |
| No. Of head | 10 PCS |
| Feeding way | Intelligent double head feeder. |
Component range
High-speed multi modular head + fixer flight vision camera makes a wider range of application components, such as:LED Chips;
Resistors;
Capacitors;
Terminals;
IC;
ETC...
Wide range of applications

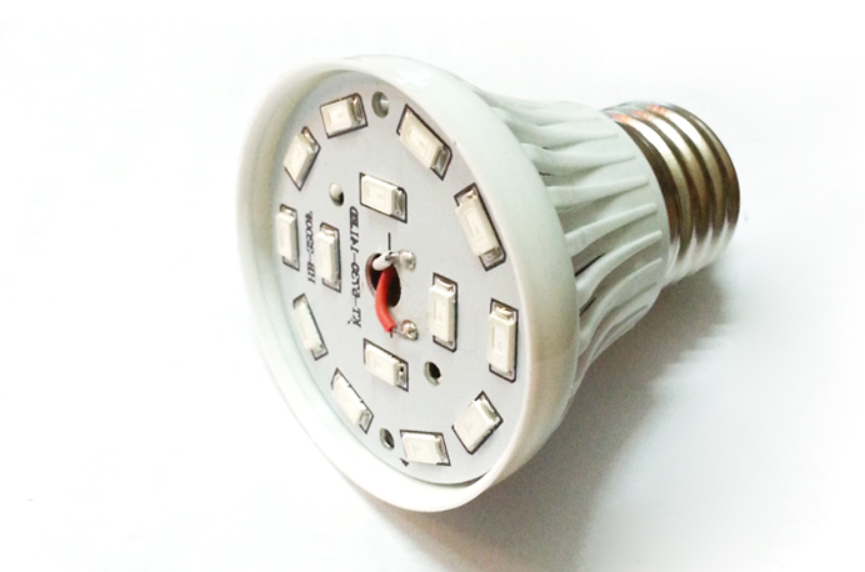

YT202S can produce:LED Bulb;
LED Driver;
Ceiling light;
Down light;
Flood light;
Street light;
LED Display;
LED tube;
etc...
Main Parts

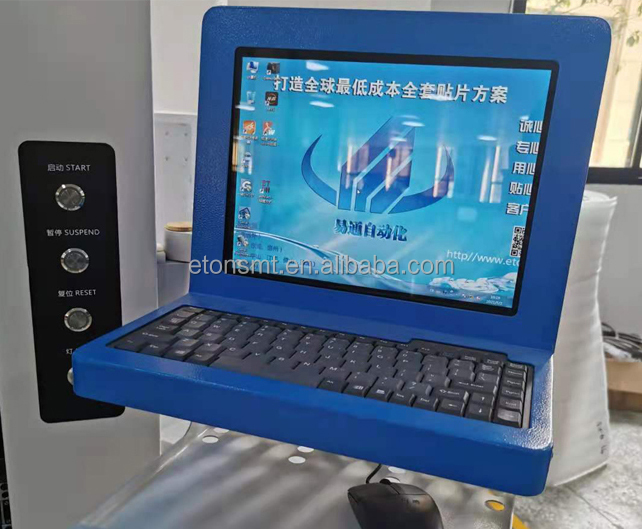

YT101S pick and place machine spare parts: like motor, camera, software, heads,etc

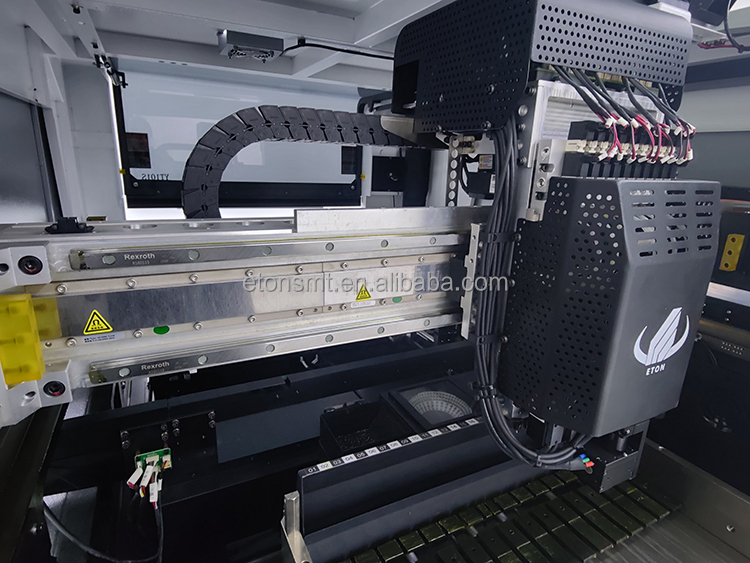

The combination of high-end magnetic linear motor + servo motor ensures high efficiency and high stability of placement. The placement capacity is 25% higher than that of traditional models

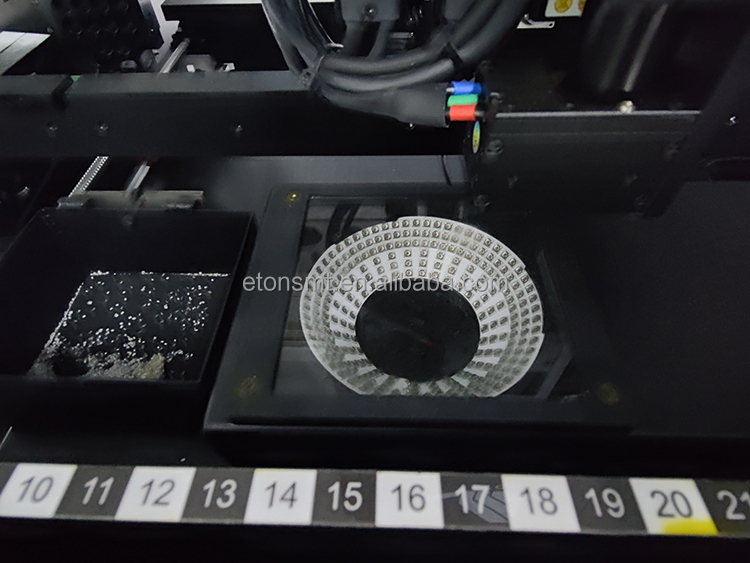

The fixed flight recognition camera makes the mounting range wider: components with a size less than 40*40mm and a height less than 15mm can be mounted. Quickly identify multiple heads at once
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
The features of ETON LED chip mounter
1. ETON is long history and good experience at led chip mounter machine, especially the high speed mounter and super high speed mounter. We got more than 90% big led factory market in China. Many big Chinese brand are our clients, such as the Yankon, MLS, Foshan Lighting, NVC, etc.
2. ETON Machine is cheaper compared with same capacity. We have different speed module, like the 40000 cph, 80000 cph, 180000 cph, 250000 cph and 500000cph. With more choose if you cooperation with us.
3.ETON machine is multifunctional and intelligent. Suitable for all kinds of led chip and electrical components, such as the IC, Resistor, Capacitor, Terminal , Shaped components, etc
4. ETON machine could be customized according to your product design with strong R&D power.
