High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

Name: HighSpeed Vision SMT Machine for Microchip and IC Placement on Circuit Boards
Brand: ETON
Price: 1 USD

Wholesale High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards from china suppliers

Brand Name : ETON

Model Number : YT20S-II

Certification : CE,CC,SIRA

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 50 sets per month

Delivery Time : 30 working days

Packaging Details : wooden boxes

Contact Now

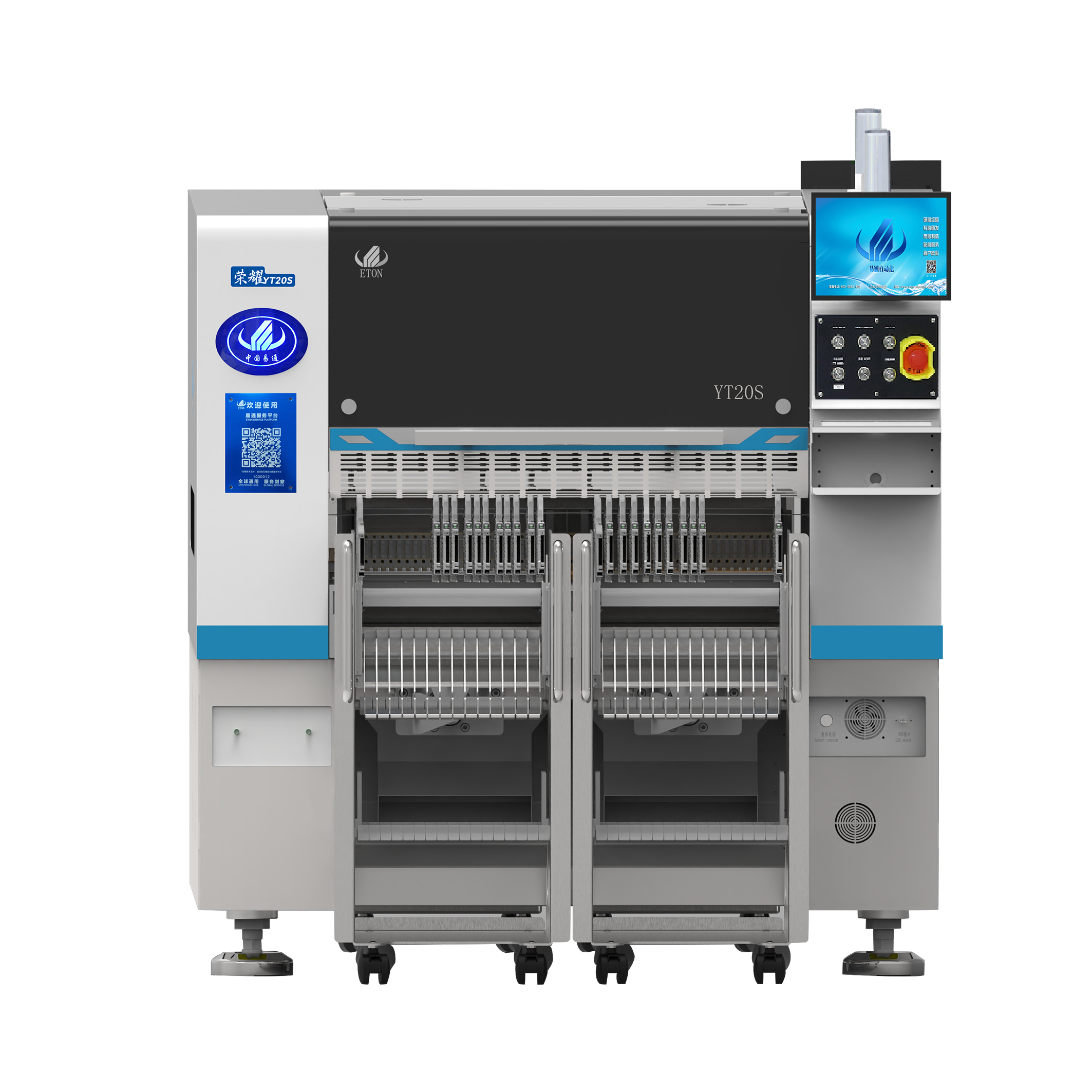

YT20S Pick And Place Machine

High-speed multi-integrated machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.

High-Speed Vision SMT Machine for Microchip and IC Placement on Circuit Boards

Integrated Placement Head

High-speed multi-integrated machine,breaking through industry conventions, greatly improving mounting speed, accuracy and stability.

Vacuum Sensing Device

Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.

Precision Corner System

The modular corner system independently controls the angle of each component to ensure high-precision placement. 10 suction nozzles per head, with a center distance of 16mm.

Vision System

The integrated high-speed and precise flying recognition camera enhances recognition accuracy

SMT Line

Pick and place machine

Max PCB size: 500*300

Optimal speed:

Function: Mounting LED chips and resistors, IC (SMD components) on the PCB

Semi-auto stencil printer machine

Max PCB size:600*350mm

Function: Printing solder paste on FPCB

Double rail conveyor

Max PCB size: 500*300mm
Function: Buffer the production, convey the PCBA to reflow oven, for manually check etc.

8 Zones reflow oven machine

Max PCB size: 450mm

Function: Soldering the Led chip/resistor/IC/ rectifiers etc, with the PCB together by heating

Model	YT20S
Total Weight	2380kg
PCB Length Width	Max:500300mm(1200450 option) Min:50*50mm
PCB Thickness	0.5-5mm
PCB Clamping	Cylinder clamping, track width adjustable
Mounting Mode	Group picking and separate placingseparate picking and separate placing
Software	R&D independently
Mounting Precision	CHIP±0.03mm QFP±0.025mm
Mounting Height	16mm (Other height can be customized)
Mounting Speed	98000 CPH(Under best condition)
Components	0201~12MM packaging material and IC material(Optional fixed camera for 0201~35*35MM),Other component size can be customized
Components Space	0.2mm
No. of Feeders Station	104 PCS
Power	220AC 50HZ
Power Consumption	1.5kw
